Roll-A-Ramp Powered Auto Fold™ Full-Size Van Ramp
-
Detail
Description

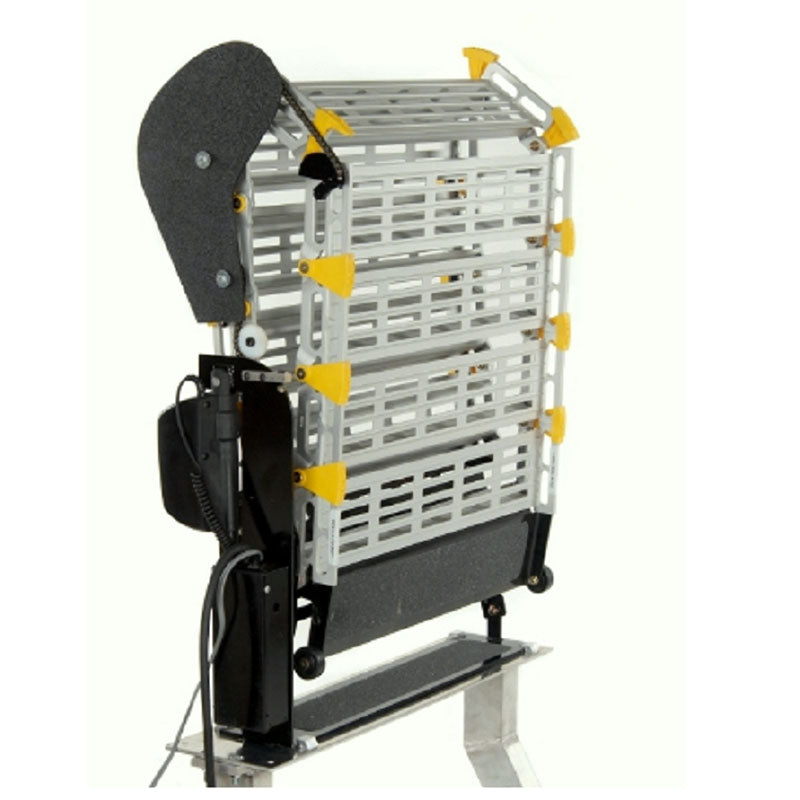

Roll-A-Ramp Powered Auto Fold™ Full-Size Van Ramp
Roll-A-Ramp's Powered Wheelchair Ramps for Vans provides a cost-efficient solution to help wheelchair and scooter users access vans. Since there is no need to convert the van, this wheelchair ramp costs less. This is the only power ramp on the market.

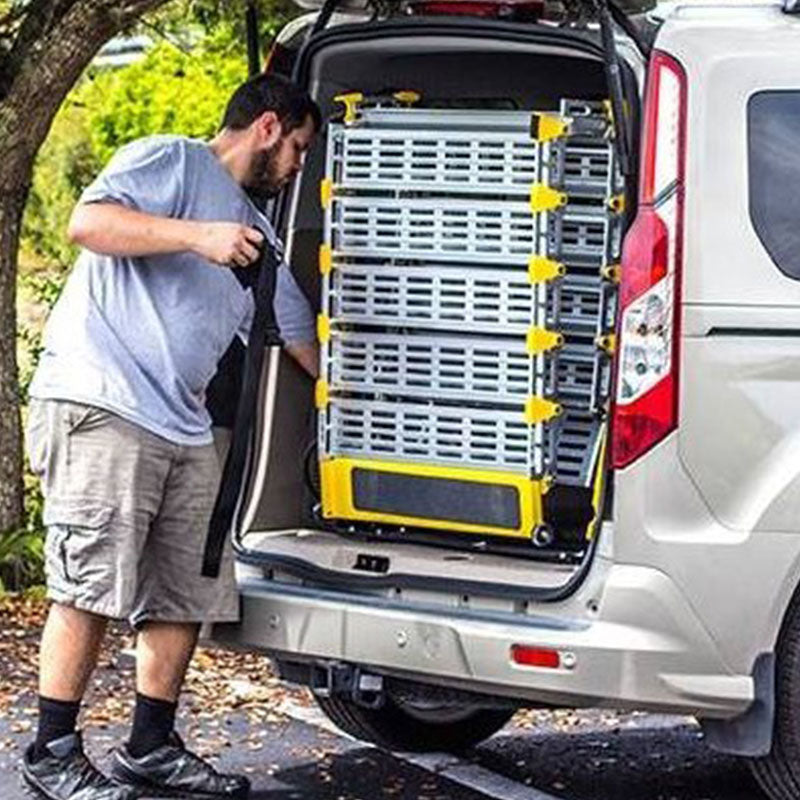

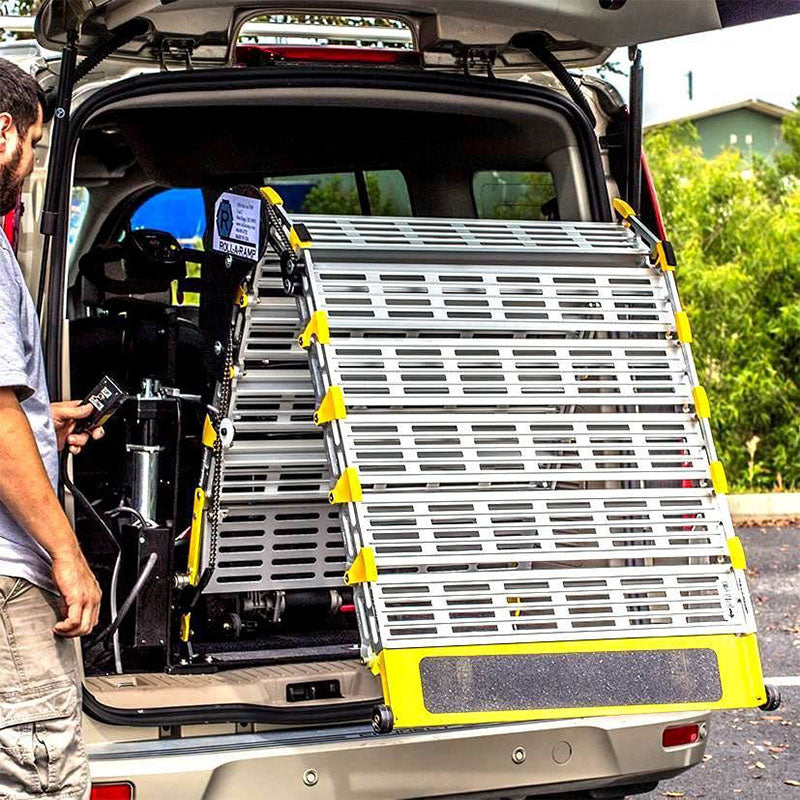

With a simple touch of a button, these Powered Wheelchair Ramps fold into the van door, requiring no lifting. Lightweight and easy to use, these ramps feature an override function for manual operation, so you will never be stranded in case of power loss. Choose from a pendant or wireless remote, available in 3 different sizes.

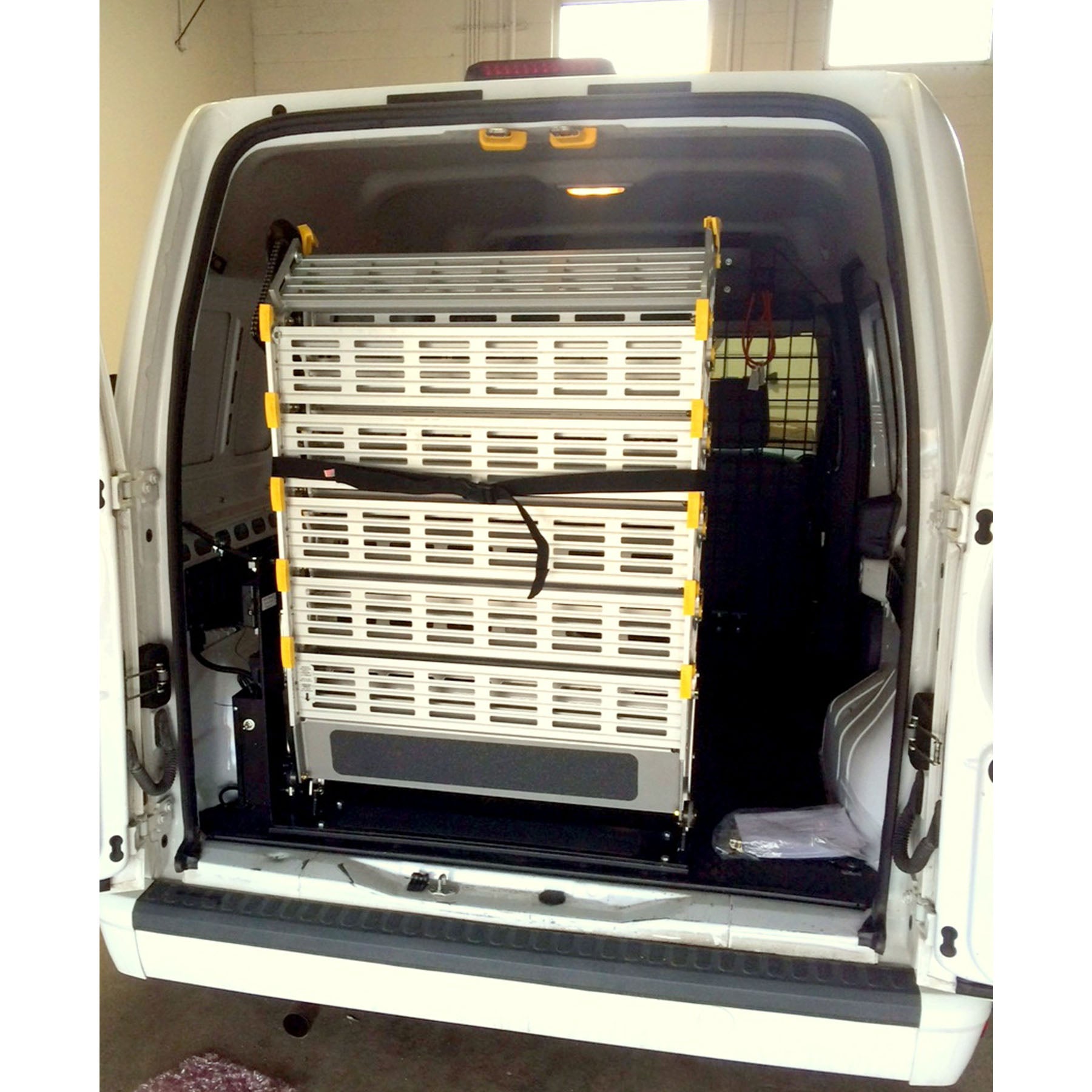

Powered Wheelchair Ramps for Vans are less costly than a lowered floor conversion or a lift and can be installed into many different van models. Installation can be completed in 2-4 hours with the included mount bracket and hardware. These ramps are the perfect option for those who cannot lift or for those who want a ramp that folds in and out automatically. The 1,000 lb. capacity ramp deploys at the touch of a button. Choose from either the pendant cord model or the more popular wireless remote option.
All three available ramp widths are compatible with Stow-N-Go Seating. The model you choose will depend on the chair wheelbase, van door opening, and individual needs. It's available in 26", 30", and 36" wide, depending on your van and needs.
Since there are no hydraulics to fail, Powered Wheelchair Ramps for Vans are highly reliable and secure.
The highly dependable Roll-A-Ramp Powered Wheelchair Ramps for Vans can hold a 1,000 lb. capacity. There is an unconditional 10-year warranty on the ramp and a 1-year warranty on the motor.Product Video
Safety

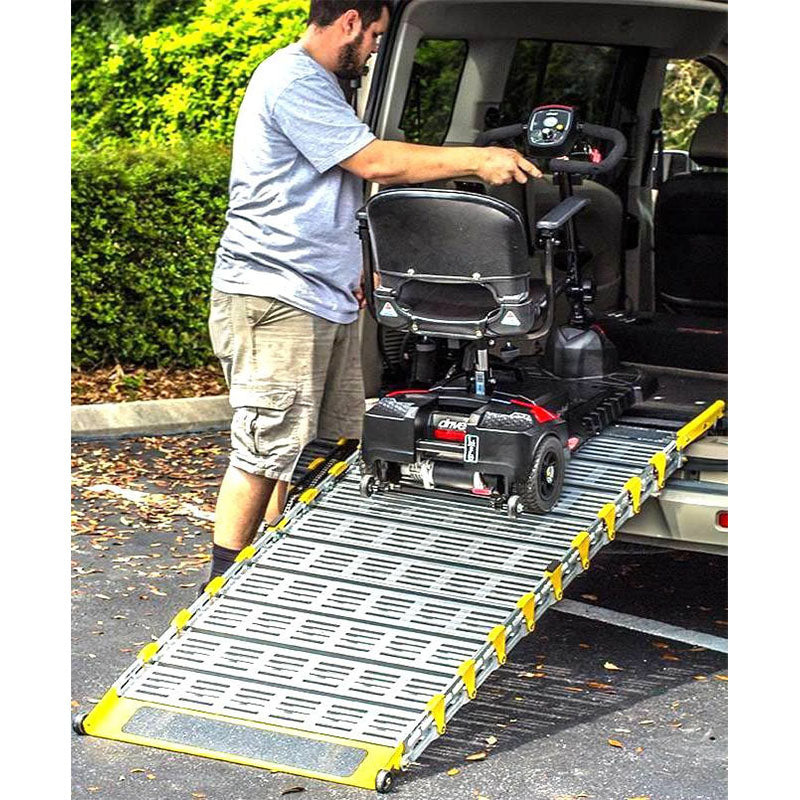

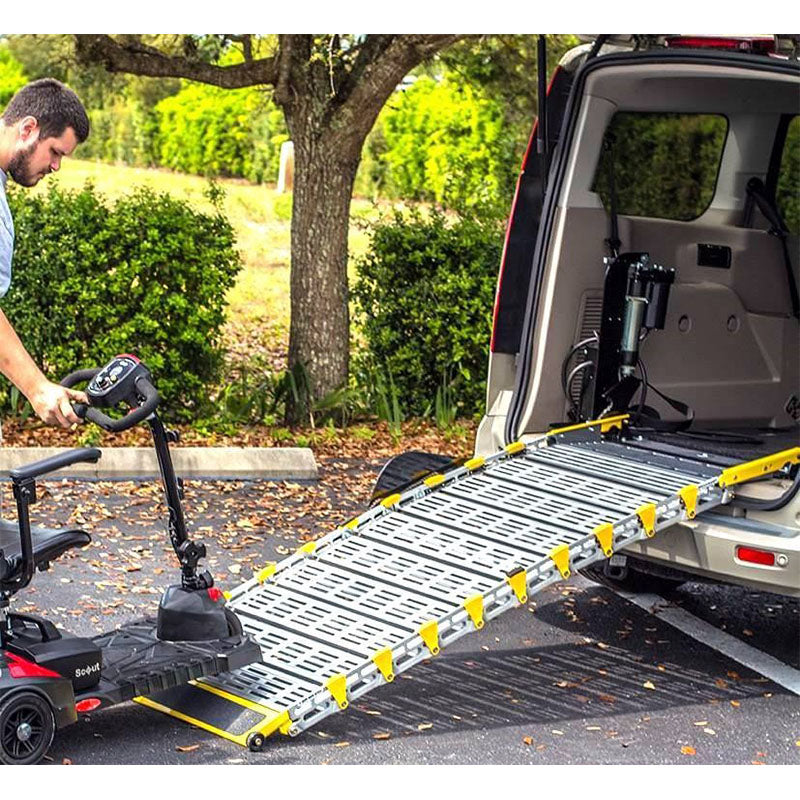

Unlike traditional van lifts which keep the occupant high off the ground in the wheelchair, Roll-A-Ramp powered ramps allow for caregivers to walk behind or alongside the occupant. Using superior engineering, details such as Safety Rails prevent the user from leaving the ramp, while ridges and slots provide extreme traction in wet or dry conditions.
Reliability
With no hydraulics to fail, Roll-A-Ramp-powered models are extremely reliable. An industrial actuator motor operates the ramp, so dependability is guaranteed.
Product Features:
For Use With:- Holds up to 1,000 lbs.
- Less costly than a lowered floor conversion or a lift.
- Choose from either the pendant cord model or the popular wireless remote option.
- Includes an unconditional 10-year warranty on the ramp and a 1-year warranty on the motor.
- Perfect for those who cannot lift or for those who want a ramp that folds in and out automatically.
- Wheelchairs/Scooters
- Delivery Vehicles
- Fleet Vans
- Handicap Transportation Organizations
Note: Professional installation will be required.
Ramp Calculation
Roll-A-Ramp Powered Mini Fold™ Fold Van Ramps

This ramp calculation chart will help you figure out how long your Roll-A-Ramp should be.
How long of a ramp should I buy?
Generally Recommended Slope Angles:
4.8-degree: This is Americans With Disabilities Act compliant
7-degree: Manual wheelchair users who are independent or who have an attendant with limited strength
10-degree: Manual wheelchairs with a reasonably strong attendant
12-degree: Power wheelchairs or scooters and manual chairs with a strong attendant
15-degree: Restricted space, unoccupied loading/unloading

Determining the length of a ramp is not complicated
Determining Ramp Length:
Measure total rise (how many inches from lower level to upper level) and divide by the slope.
4.8-degree: Rise distance divided by 1
7-degree: Rise distance divided by 1.5
10-degree: Rise distance divided by 2
12-degree: Rise distance divided by 2.4
15-degree: Rise distance divided by 3
Example: For a desired slope of 7 degrees with a rise of 12″ (1 foot), 12/1.5 = 8 foot ramp
-
