Rich Solar RS-M200D 200 Watt 24 Volt Solar Panel New

WISHLIST
$57.15
Quantity
ADD TO CART
BUY IT NOW
  • Detail

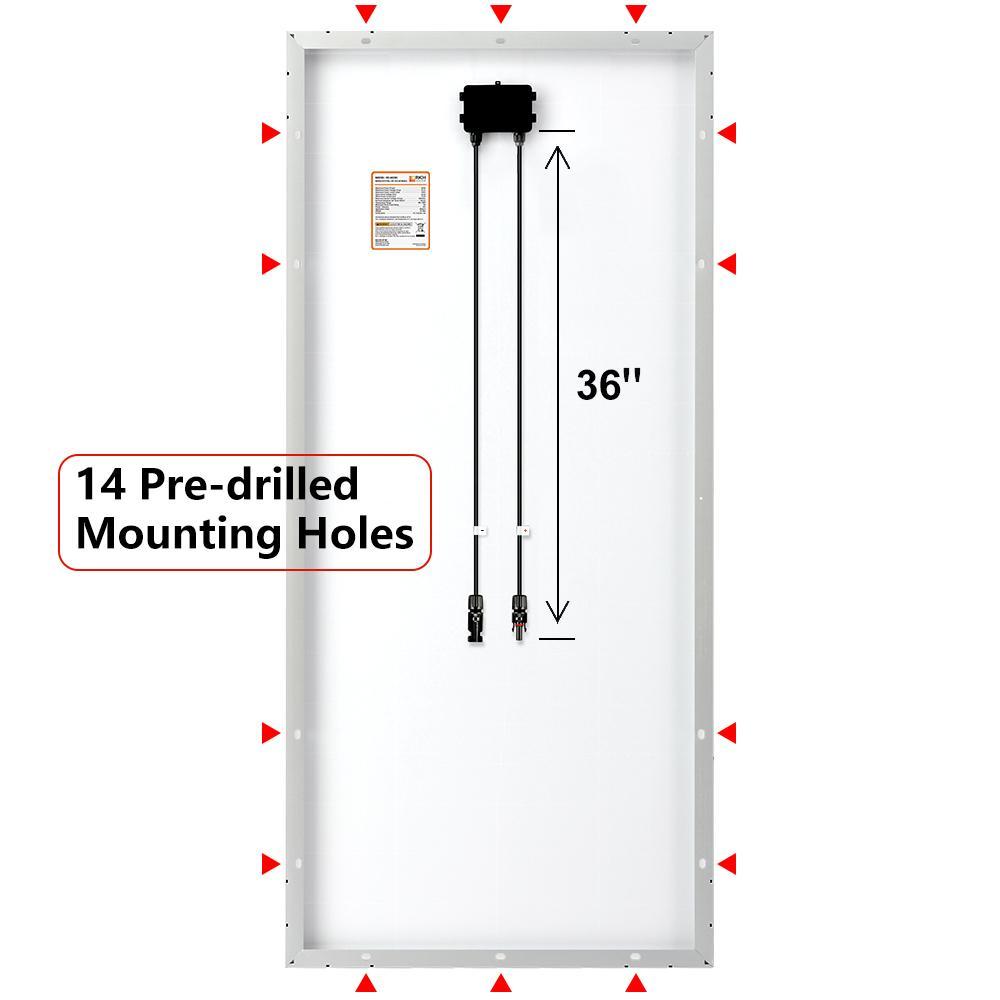

    The Rich Solar RS-M200D 200 Watt 24 Volt Solar Panel has easy installation and handling for various applications. The panel comes with pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts. Panel also is compatible with on-grid and off-grid inverters.
    Overview (Right Column)

    Brand new in box

    Manufacturer direct shipping from CA

    25 year limited manufacturer's warranty

    Authorized Rich Solar dealer

    Features (Left Column)
    • 5 buss bar solar cell configuration

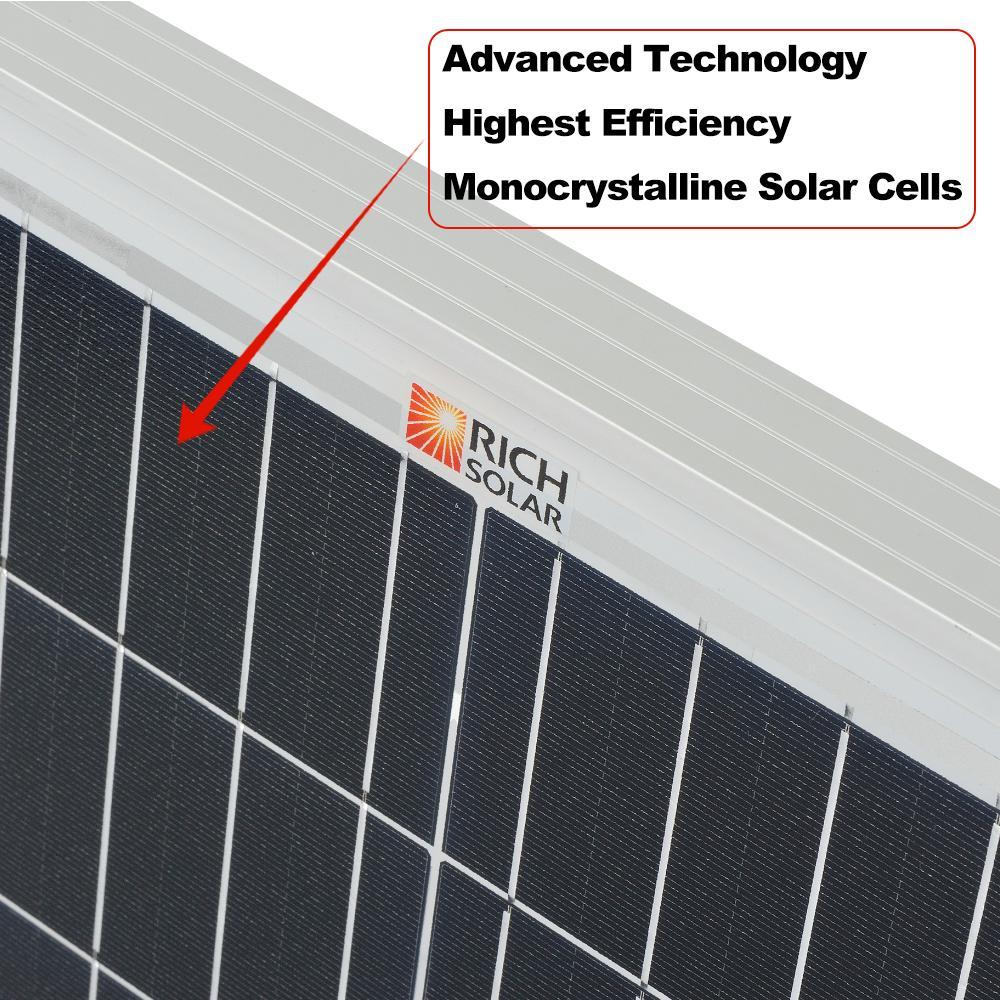

    • Mono PERC Technology
    • Lightweight anodized aluminum frame
    • High Transmission, AR (anti-reflective) Coated Tempered Glass
    • Plug and play junction box

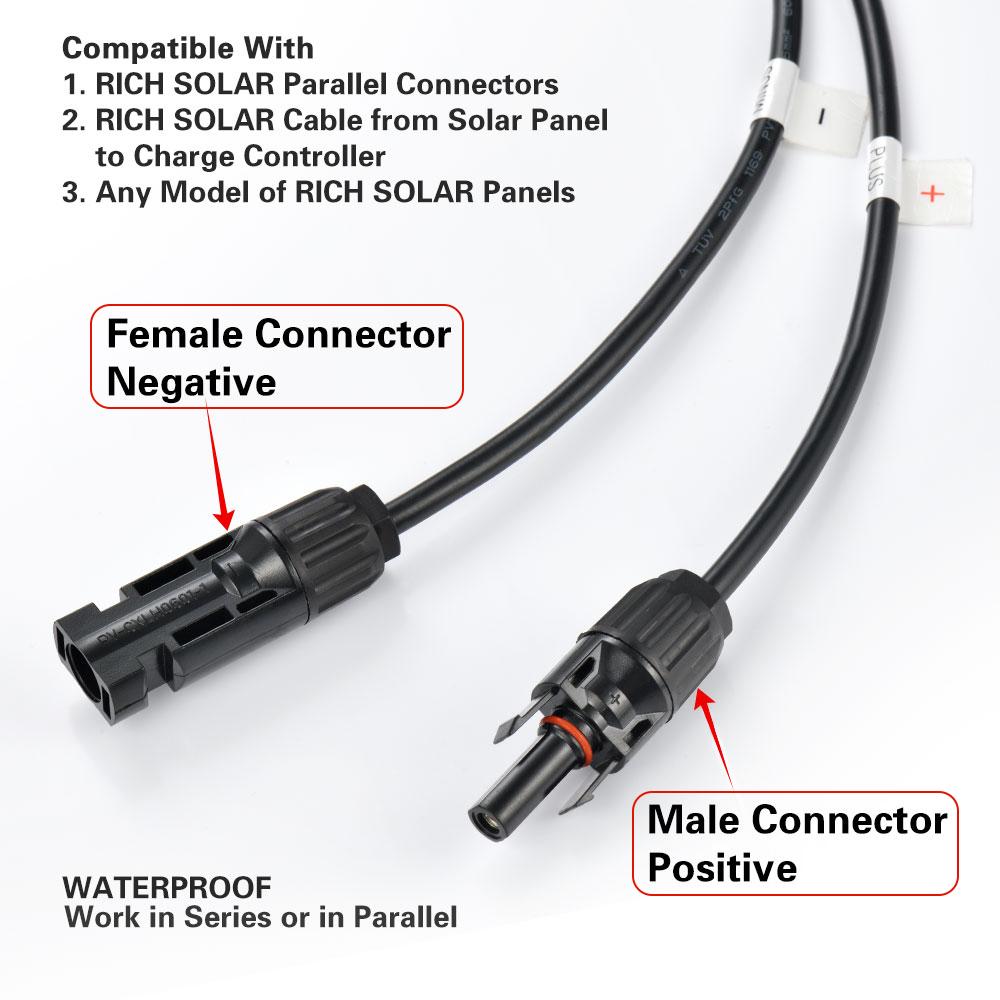

    • Industry standard quick connect cables work in series or in parallel
    • Certified to withstand challenging environmental conditions
      Features (Right Column)
      • Excellent low light performance on cloudy days, mornings and evenings
      • Rich Solar 200 watt monocrystalline solar panel
      • Panel leads (pair): 3 feet each
      • IP65 rated waterproof junction box
      • IP67 rated waterproof connectors
      • Bypass diodes built-in the junction box

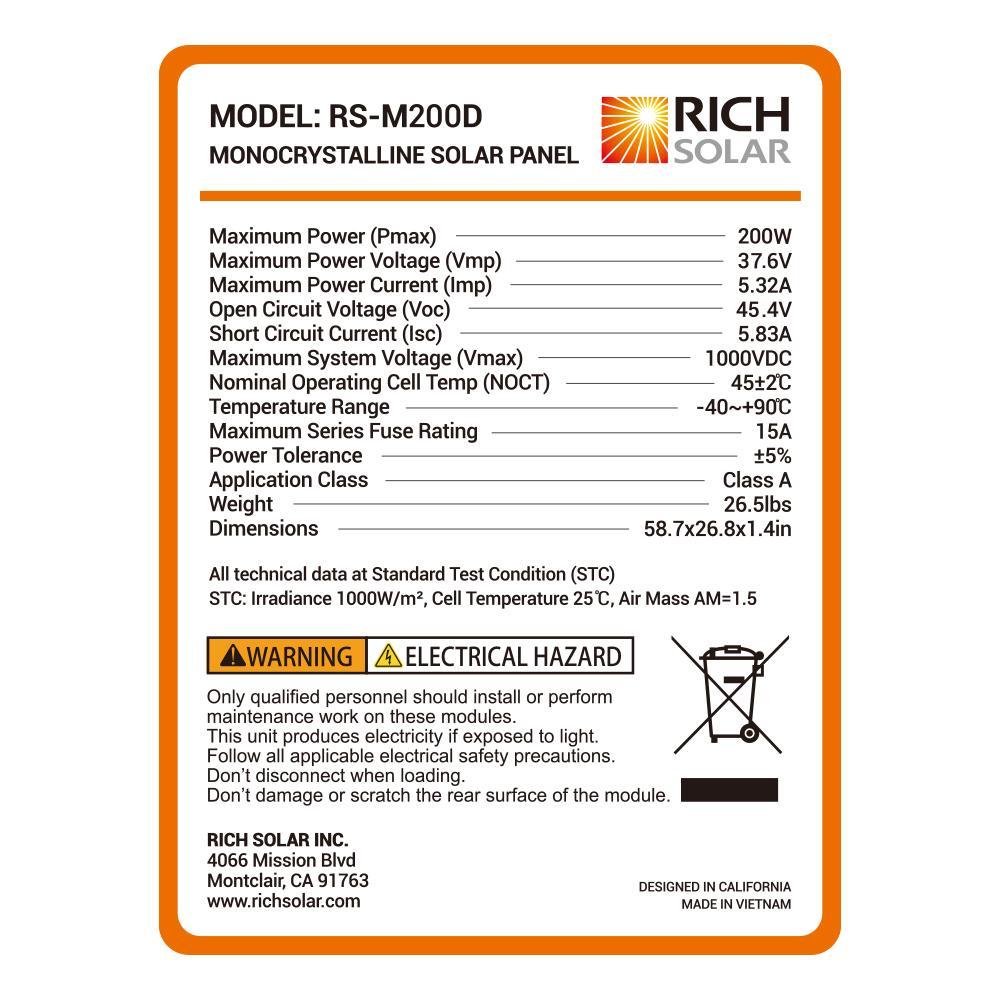

      Product Specifications (Left Column)
      • Maximum Power(Pmax): 200W
      • Maximum Power Voltage(Vmp): 37.6V
      • Maximum Power Current(Imp): 5.36A
      • Open Circuit Voltage(Voc): 45.4V
      • Short Circuit Current(Isc): 5.83A
      • Maximum System Voltage(Vmax): 1000VDC
      • Temperature Range: -40°C ~ 90°C
      • Max Series Fuse Rating: 15A
      • Weight: 26.5 lbs
        Product Specifications (Right Column)
        • Dimensions: 58.7 x 26.8 x 1.4 in



         Package Contents:

        • 200 Watt 24 Volt Solar Panel
        • User Manual
        WARRANTY
        The manufacturer warranties this product for a 25 year limited power output.
