Rich Solar RS-M170 100 Watt 12 Volt Solar Panel New

WISHLIST
$56.88
Quantity
ADD TO CART
BUY IT NOW
  • Detail

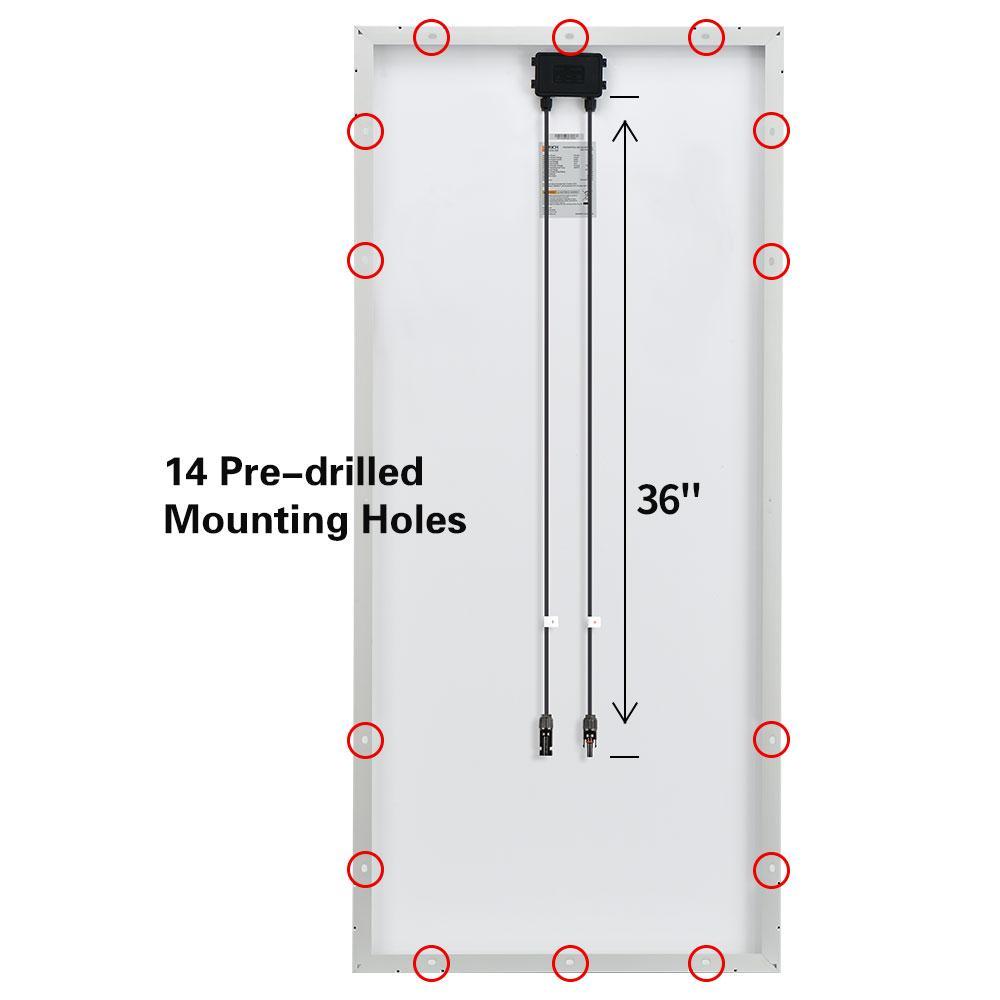

    The Rich Solar RS-M170 100 Watt Solar Panel has easy installation and handling for various applications. The panel comes with pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts. Panel also is compatible with on-grid and off-grid inverters.
    Overview (Right Column)

    Brand new in box

    Manufacturer direct shipping from CA

    5 year manufacturer's warranty

    Authorized Rich Solar dealer

    Features (Left Column)
    • 5 buss bar solar cell configuration

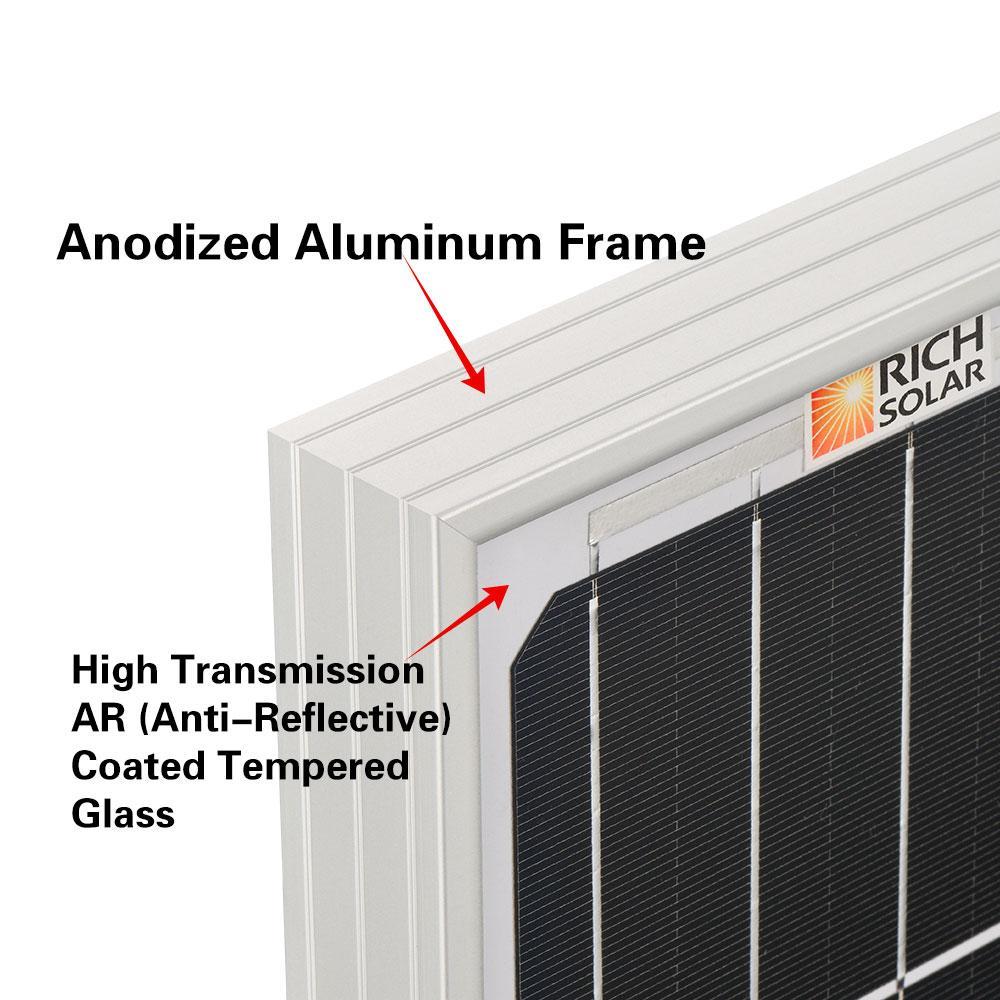

    • Lightweight anodized aluminum frame
    • High Transmission, AR (anti-reflective) Coated Tempered Glass
    • Plug and play junction box
    • Industry standard quick connect cables work in series or in parallel
    • Certified to withstand challenging environmental conditions
      Features (Right Column)
      • Rich Solar 170 watt monocrystalline solar panel
      • Excellent low light performance on cloudy days, mornings and evenings
      • Panel leads (pair): 3 feet each

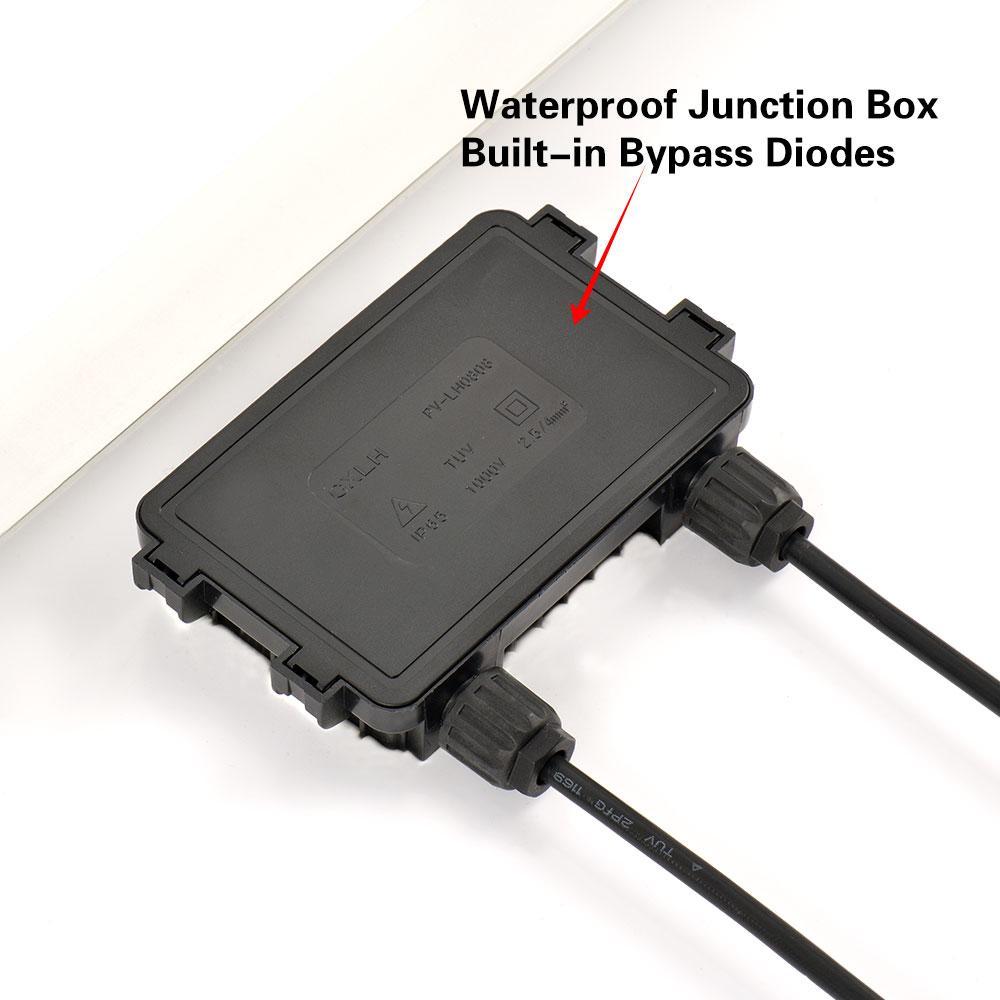

      • IP65 rated waterproof junction box
      • IP67 rated waterproof solar connectors
      • Bypass diodes built-in the junction box

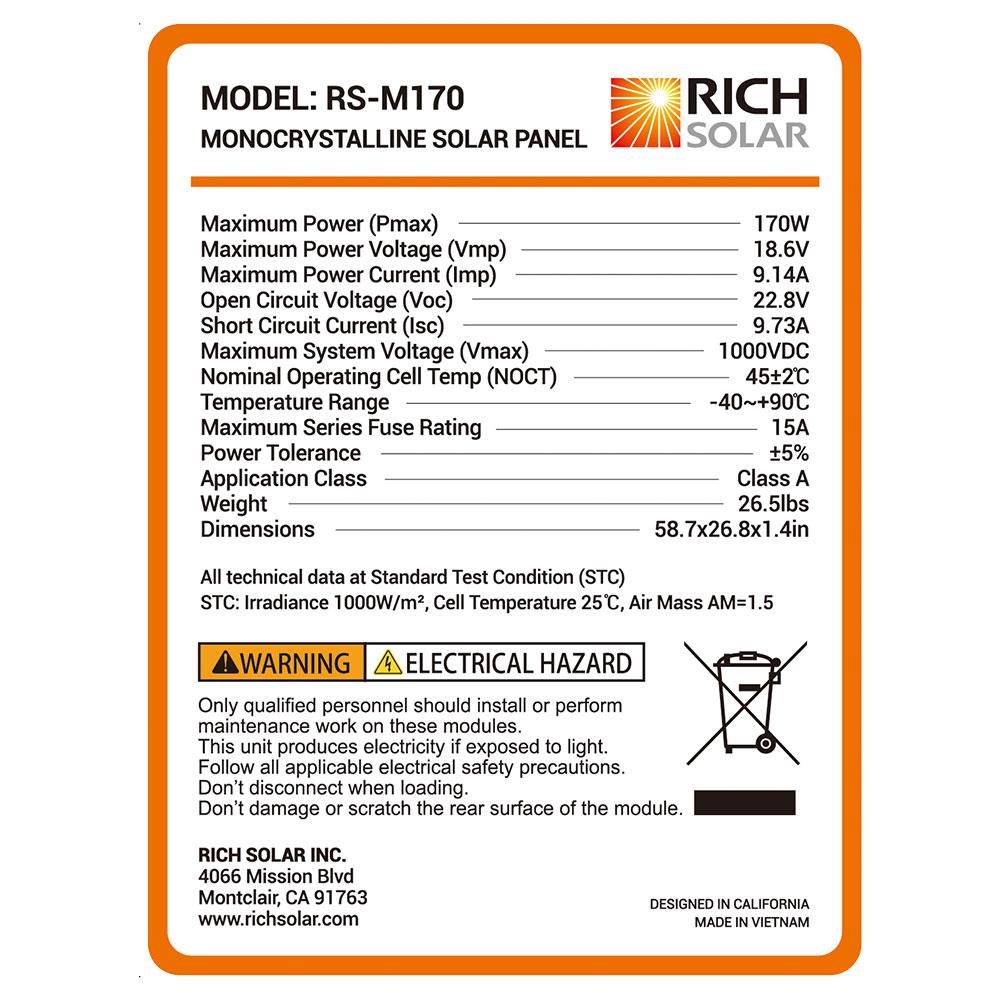

      Product Specifications (Left Column)
      • Maximum Power(Pmax): 170W
      • Maximum Power Voltage(Vmp): 18.6V
      • Maximum Power Current(Imp): 9.14A
      • Open Circuit Voltage(Voc): 22.8V
      • Short Circuit Current(Isc): 9.73A
      • Maximum System Voltage(Vmax): 1000VDC
      • Temperature Range: -40°C ~ 85°C
      • Max Series Fuse Rating: 15A
        Product Specifications (Right Column)
        • Weight: 26.5 lbs
        • Dimensions: 58.7 x 26.8 x 1.4 in



         Package Contents:

        • 100 Watt Solar Panel
        • User Manual
        WARRANTY
        The manufacturer warranties this product for 5 years on workmanship and materials; 25 years 80% output power.
