Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New

The Renogy 40A Rover MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, the Rover ensures maximum power point solar charging that gets more energy to your battery bank.

When paired with the Renogy BT-1 Module and DC Home app you can view system performance in real-time and make parameter changes without having to get up.

• Max. Solar Input Power 12V/520W, 24V/1040W: The Rover MPPT charge controller can work with standard off-grid 12/24V solar panels with high voltage or multiple panels with voltage up to 100V. In particular, this controller will significantly increase the efficiency of a solar system where the solar panel voltage is much higher than the battery voltage.

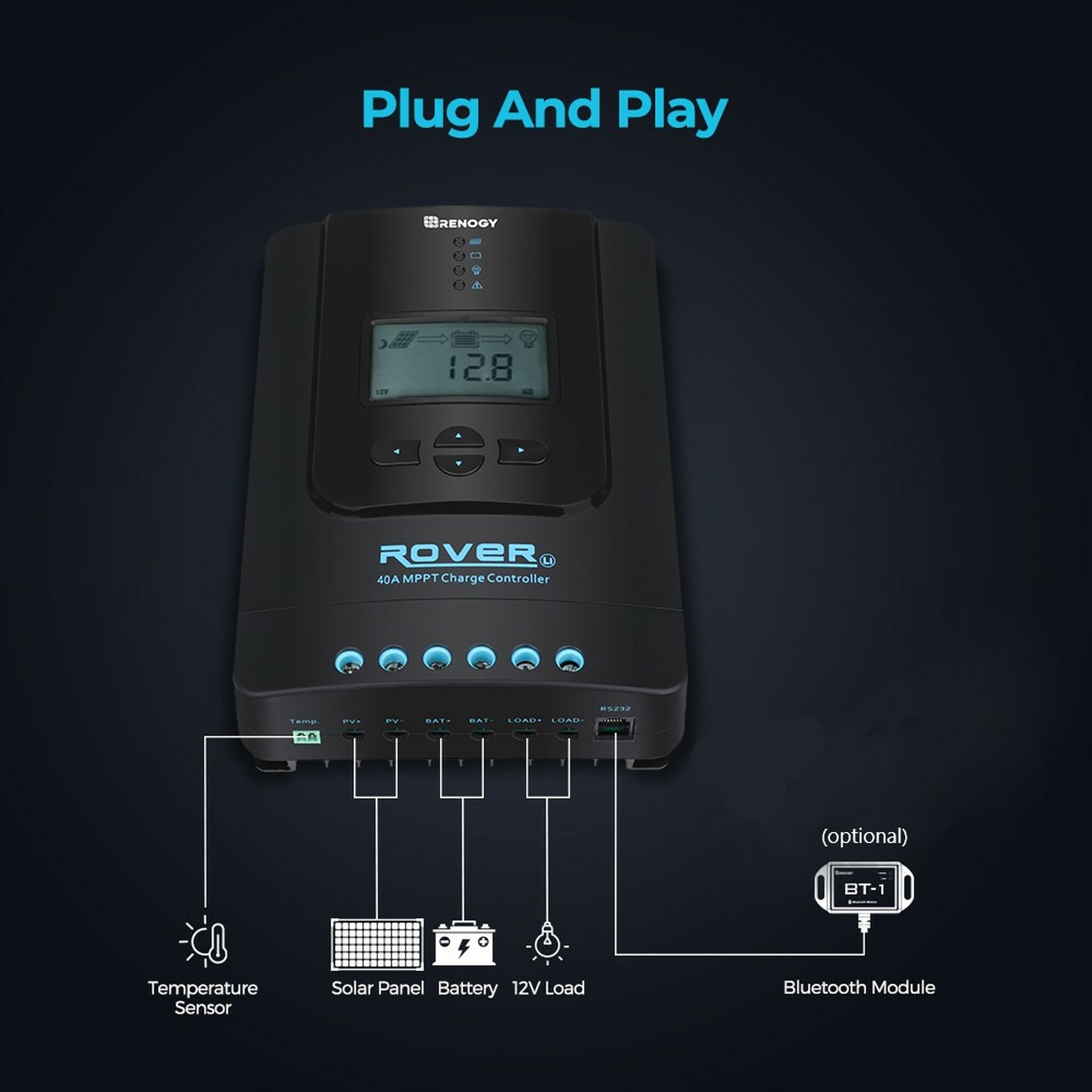

• Incredibly Easy to Install and Maintain: Mounting Brackets is in the package and the RS232 communication port allows the Renogy Rover to communicate with the Renogy BT-1 Bluetooth module (highly recommend to add-on ) that will enable you to monitor the status and productivity of your panels through the Renogy DC Home App.

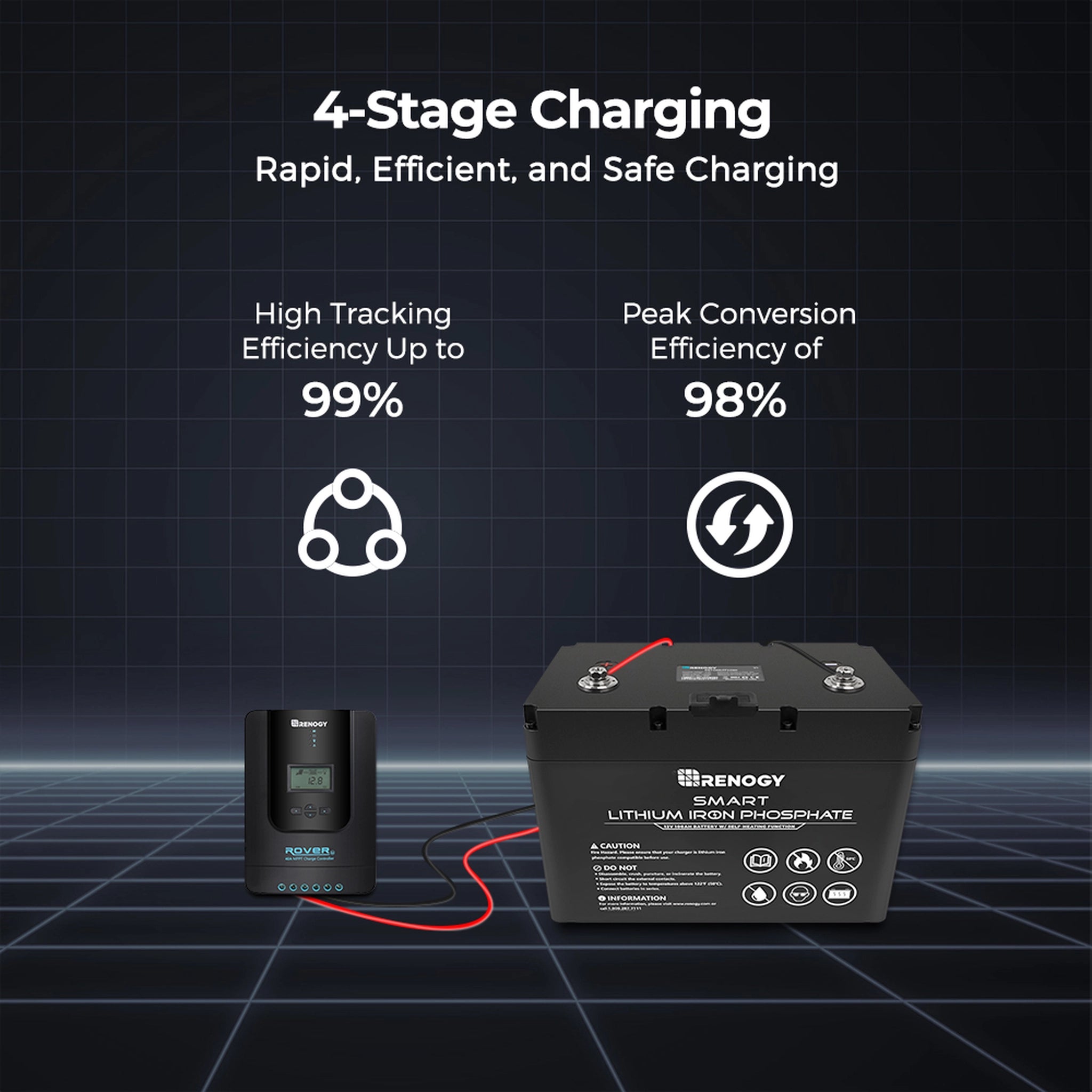

• Advanced Ultra Fast Maximum Power Point Tracking: Renogy Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day.

• Intelligent Charging Protection: Renogy Rover MPPT provides 4-stage charging (Bulk, Absorption, Float, and Equalization) and features a comprehensive set of electronic protection functions such as stopping reverse current at night (from the battery back to the solar panel), automatic cut off to prevent over-charging and deep discharge, solar panel over voltage, over load, short circuit and reverse polarity protection.
• Temperature Monitor and Compensation: Die-cast aluminum design ensures excellent heat dissipation. Fitted with a Remote Temperature Sensor, the Rover MPPT Charge Controller can measure battery temperature in real-time and use this data for very accurate temperature compensation, assuring stable and constant charging.

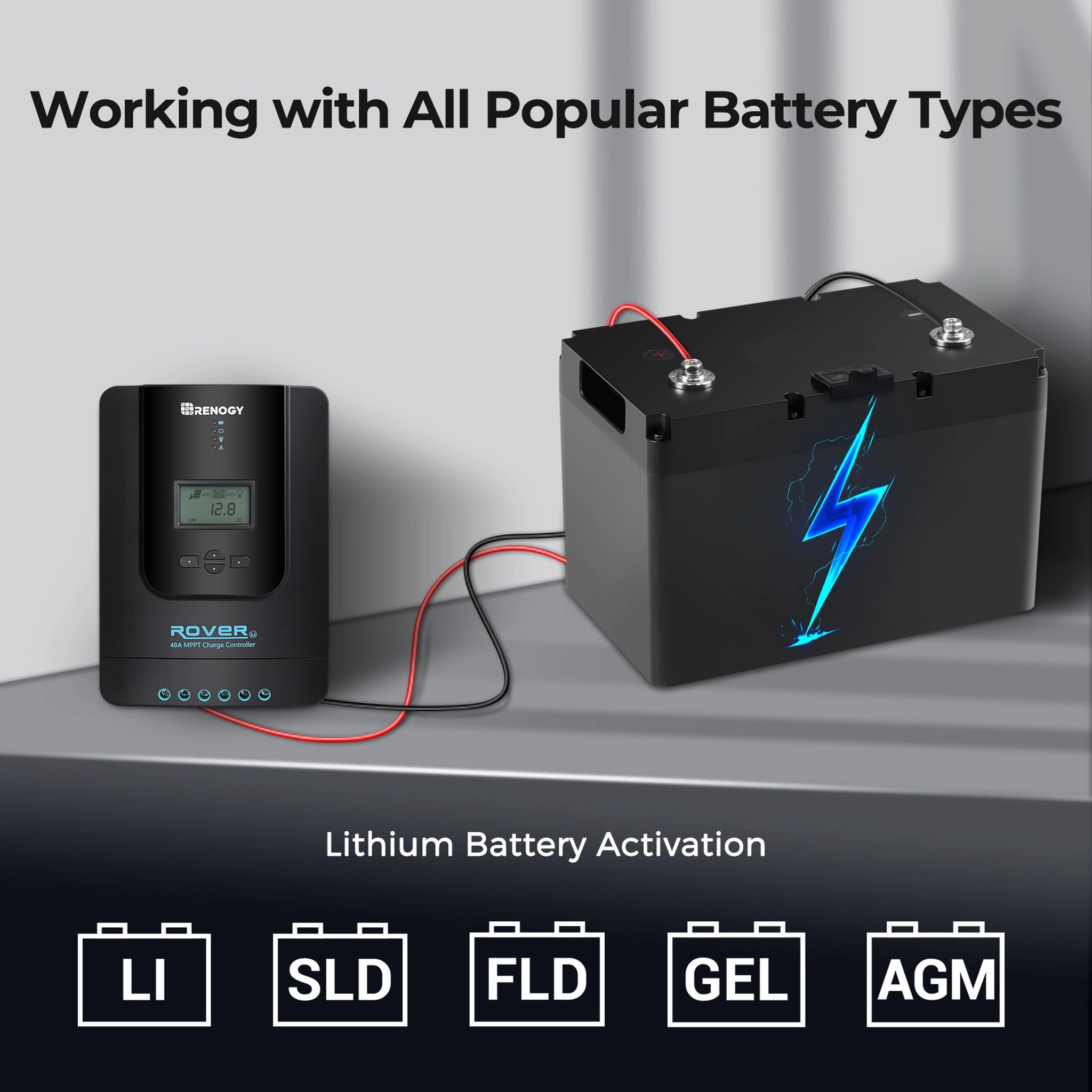

• 12V/24V System Voltage Automatic Identify: The Renogy Rover 40A MPPT Charge Controller supports both 12V and 24V systems and can automatically identify system voltage once connected to a Sealed, Gel, AGM, and Flooded battery (manual setting is required for 24V Lithium battery).

• Nominal System Voltage: 12/24V Auto-Detect
• Protection Level: IP32
• Rated Charge Current: 40A
• Operating Temperature Range: -35°C to 45°C; -31°F to 113°F

• Max. PV Input Voltage: 100 VDC
• Storage Temperature Range: -35°C to 75°C; -31°F to 167°F

• Max. PV Input Power: 12V/520W, 24V/1040W
• Operating / Storage Humidity: ≤ 90%, No Condensation

• Power Consumption: ＜100mA/12V; ＜58mA/24V
• Temperature Compensation: -3mV/°C/2V

• Max Battery Voltage: 32V

• Ground Type: Negative
• Temperature Sensor: 9.8ft cable length

• Electrical Protection: Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.
• CE: YES

• Dimensions: 238 x 173 x 72.5 mm; 9.37 x 6.81 x 2.85 in
• FCC Class B Part 15 Compliant: YES

• Weight: 2.0kg / 4.41 lb
• Max. Terminals Size: 8 AWG 10mm2
• Compatible PWM Charge Controller: RNG-CTRL-WND10/RNG-CTRL-WND30-LI/RNG-CTRL-ADV30-LI
• Communication Protocol: RS232
• Port Type: RJ12

• Compatible MPPT Charge Controller: RNG-CTRL-RVR20/RNG-CTRL-RVR30/RNG-CTRL-RVR40/ RNG-CTRL-RVR60S/RNG-CTRL-RVR100
• Compatible App: Renogy DC Home App available in both the App Store and Google Play

• Input Voltage: 5V
• Protection Grade: IP54

• Standby Power Consumption: 0.04W
• Operating Power Consumption: 0.05W
• Communication Range: ≤82ft (25m)
• Serial Baud Rate: Fixed Baud Rate 9600bps

• Cable Length: 16.4 ft (5.00m )

• Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
• FCC Class B Part 15 Compliant: YES

• Weight: 4.58oz (130g )

• Operation Temperature: -4°F to 185°F ('-20℃ ~ 85℃)
