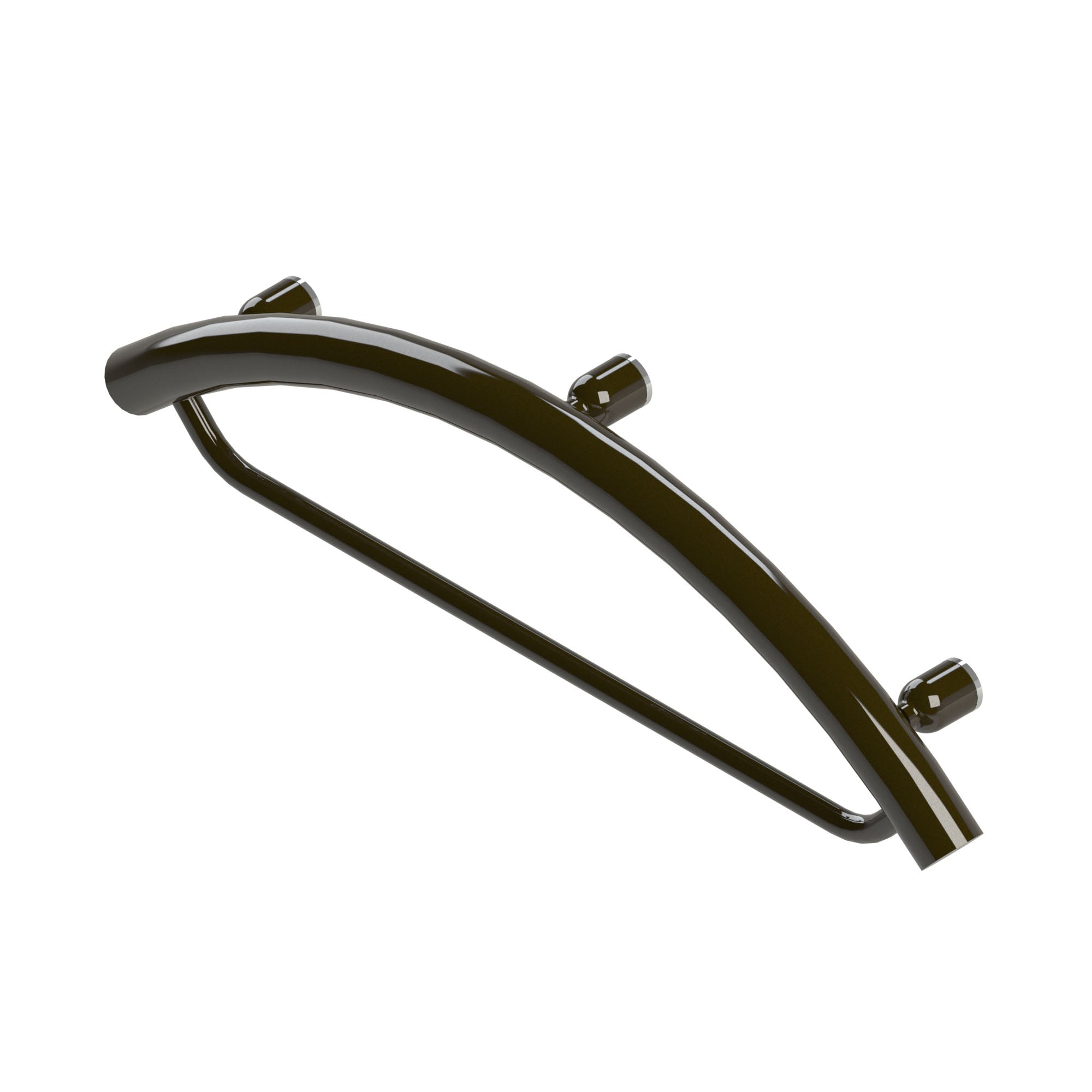

Invisia Towel Bar

Invisia’s sleek Towel Bar adds a modern and elegant touch to any bathroom. The unique design disguises the grab bar feature as a luxurious bathroom accessory for your towels. The Towel Bar offers convenience, supporting up to 500lbs / 227kgs, without sacrificing the look or feel of the space. With color options that include polished chrome, stainless steel, and bronze, it is easy to find the perfect Towel Bar to complement any bathroom.

Product Video

Product Features:

• ADA Compliant.
• Supports up to 500 pounds when installed to a structural wood backing.
• Discreet wall stems with concealed screws.
• 3 points of contact for maximum structural support.

How to Install:

1. Back offset screws from rail sockets.
2. Allow wall stems to freely move in and out of rail sockets.
3. Peel label to expose sticker on the back of the wall stems.
4. With wall stems inside rail sockets, push the rail against the wall.
5. Firmly press the rail so stickers on the back of the wall stem contact wall.
6. Remove rail carefully so wall stems stay on the wall.
7. Each wall stem is located in relation to each other.
8. Using wall stems as locating guides, notch the tile with a center punch.
9. Fasten the wall stems from the wall using appropriate fasteners and waterproofing.
10. Place rail back onto the fastened wall stems.
11. Secure rail by tightening set screws.
12. Inspect hardware regularly, and tighten if required.

Extended Product Information:

• Towel Bar Instructions
• Product Specifications

Frequently Asked Questions

DO THE SIZE 16”/41CM AND 24”/61CM REFER TO THE SIZE OF THE PRODUCT? OR HOW IT INSTALLS?
The 16”/41cm has a total length of 20.5"/52.3 cm, but installs on 16”/41cm stud spacing. The 24”/61cm has a total length of 29”/74 cm but installs on 24”/61cm stud spacing.

WHAT IS THE LIMITED LIFETIME WARRANTY?
Products are covered by a limited lifetime warranty against defects in materials and workmanship for the original purchaser. Warranty excludes damage caused by misuse, wood material and stain, accidental damage, alteration, normal wear, and tear, or the use of corrosive or abrasive cleaning products. The manufacturer shall not be liable for indirect, consequential damages, or for the cost of any corrective work done without HealthCraft Products Inc. prior approval. Total liability shall in no event exceed the purchase price of the goods. For complete warranty information, see the instructions for terms and conditions.
