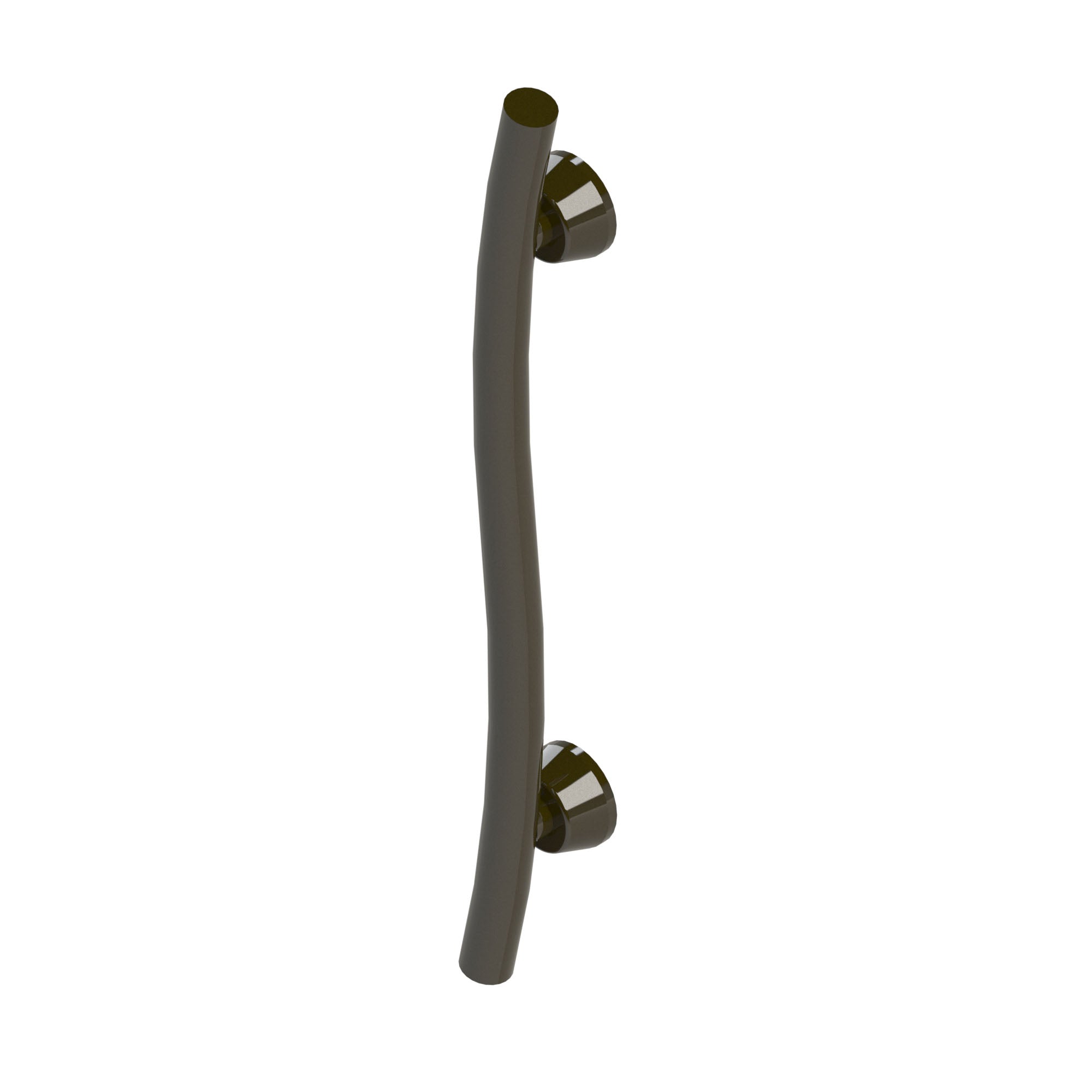

Invisia Accent Bar

Invisia’s Accent Bar is a bold and stylish way to add new life to the safety features of any bathroom. With a user weight capacity that can support up to 500lbs / 227kgs, the decorative Accent Bar grants users peace of mind without compromising the beauty of the space. Featuring several color options to complement décor, the luxurious Accent Bar can be installed anywhere—and at any angle—that support is needed.

Product Video

Product Features:

• ADA Compliant.
• Supports up to 500 lbs. when installed to a structural wood backing.
• Flange cover conceals mounting screws.
• Vertical, horizontal or angled installation.
• The flange can rotate to accommodate wood stud spacing up to 16” centers.

How to Install:

1. Back offset screws from wall flanges.
2. Remove the rail and flange covers.
3. Orient the first wall flange such that the set screw hole is facing downwards.
4. Using wall flange as locating guide, notch the tile with a center punch.
5. Secure wall flange to a wall with appropriate fasteners and waterproofing.
6. Place the rail into the installed wall flange, and the second wall flange on other ends of the rail.
7. Mark off location of second flange and Repeat steps 4-5.
8. Place rail and flange covers onto the wall flanges.
9. Secure rail by tightening set screws.
10. Install rubber plugs into flange covers.
11. Inspect hardware regularly, and tighten if required.

Extended Product Information:

• Accent Bar Instructions
• Technical Data Sheet

Frequently Asked Questions

Can the rail be mounted in different positions?
Yes – if the Accent Bar is installed into studs or a secure wood structure, it can be installed vertically, horizontally or in at other angles to suit your need.

How does the accent bar install?
While the Accent Bar is 24” / 61cm in length, it installs into 16” / 41cm stud spacing.

What is the limited lifetime warranty?
Products are covered by a limited lifetime warranty against defects in materials and workmanship for the original purchaser. Warranty excludes damage caused by misuse, wood material and stain, accidental damage, alteration, normal wear, and tear, or the use of corrosive or abrasive cleaning products. The manufacturer shall not be liable for indirect, consequential damages, or for the cost of any corrective work done without HealthCraft Products Inc. prior approval. Total liability shall in no event exceed the purchase price of the goods. For complete warranty information, see the instructions for terms and conditions.
