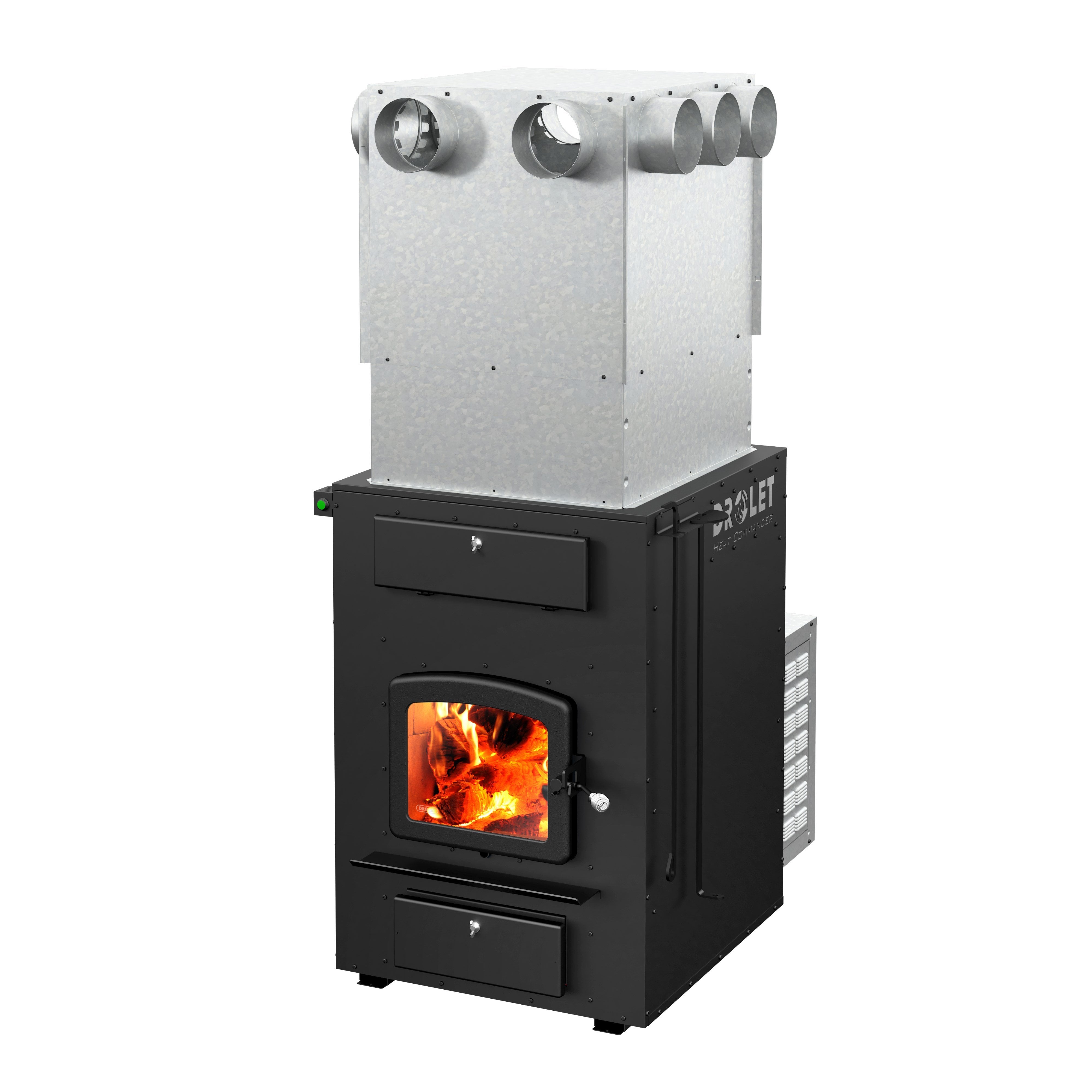

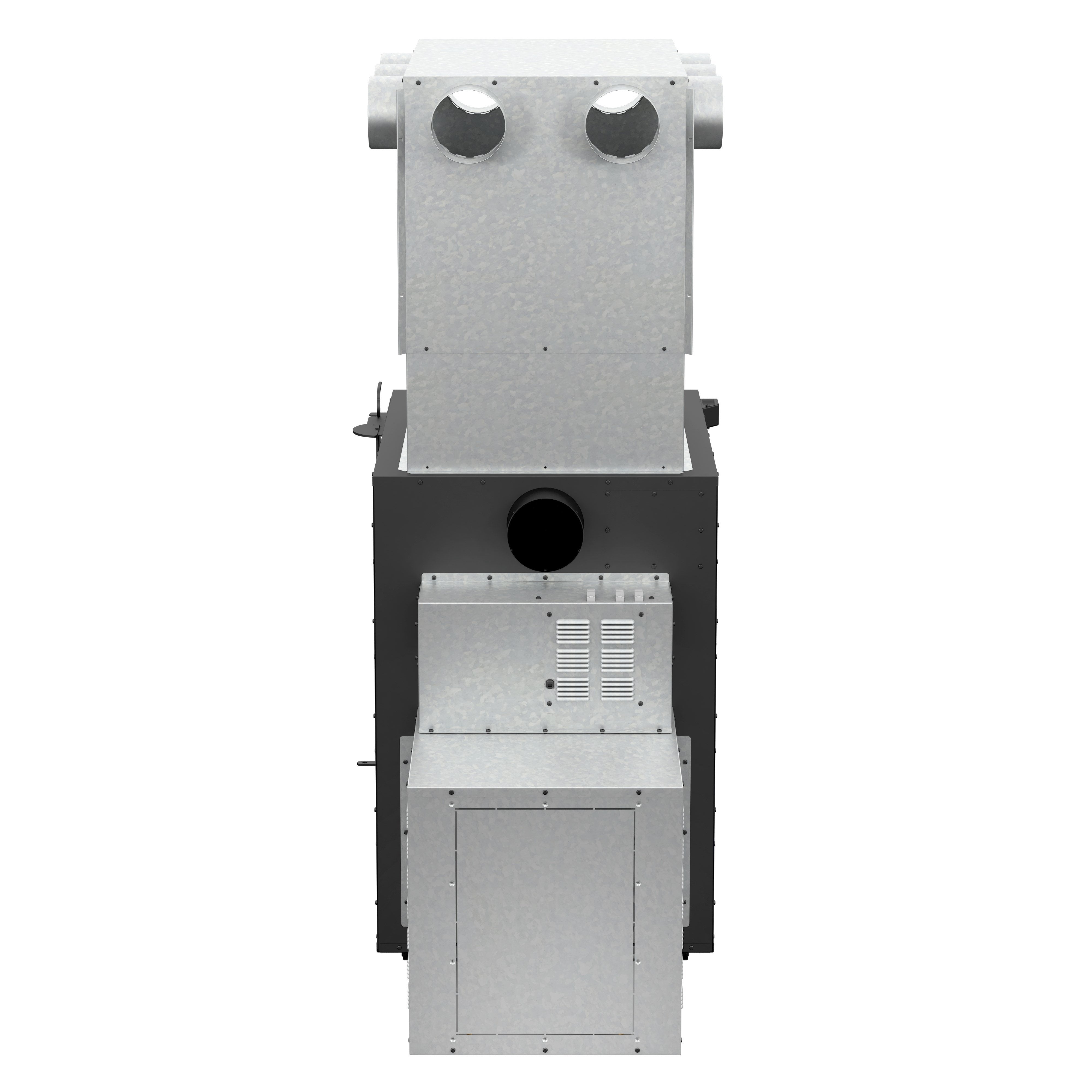

Drolet DF02003 Heat Commander 2,500 Sq. Ft. Wood Furnace New

Among the most efficient systems on the market based on distributed energy, the Heat Commander is a central heating system that is both cutting edge and accessible thanks to its innovative design and ease of use. EPA certified, its 310,000 BTU capacity makes this furnace versatile and ideal for heating spaces up to 2,500 ft². The Heat Commander’s overall thermal power is notably much higher than most comparable systems.

Result of our victory in an international innovation competition, the Heat Commander is the very first wood furnace on the market to offer Dual Fire© technology with a two-stage electronic combustion control. Find peace of mind with a self-regulated combustion that allows easy ignition. Its automated air supply and flame adjustment systems synchronize with your thermostat to offer additional safety, optimize comfort and reduce emissions with minimal maintenance.

In the USA, get a 26% tax credit on your Drolet Heat Commander purchase
The first tax credit that covers the cost of the appliance, chimney, air distribution ducts, labor for installation and related material.

• Intuitive start mode for fast and clean ignition
• Optimized combustion for low creosote formation
• Uninterrupted heat with on-demand boost based on thermostatic demand
• Among the lowest burn rates on the market (firewood savings)
• Up to 10 hours burn time

• 3.6 ft³ firebox
• 21'' logs (loading over depth and width)
• EPA certified
• Limited lifetime warranty

• Fuel type: Dry cordwood (16" recommended)
• Recommended heating area-ft²: 1,000 - 2,500
• Overall firebox volume-ft³: 3.6
• Maximum burn time: 10 h
• Maximum input capacity (dry cordwood): 310,000 BTU
• Overall heat output rate: 19,354 BTU/h (5.6 kW) to 47,052 BTU/h (13.8 kW)
• Average overall efficiency (min. to max.): 76.6% (HHV)  82.0 % (LHV)
• Delivered heat output rate (min. to max.): 13,297 BTU/h (3.9 kW) to 42,234 BTU/h (12.4 kW)
• Average delivered efficiency (min. to max.): 60.7% (HHV)  65.0% (LHV)
• Optimum efficiency: 83.2%
• Optimum heat transfer efficiency: 81 %
• Average particulate emissions rate: 0.095 lb/mmBTU (0.041 g/MJ)
• Average CO: 8.78 lb/mmBTU (3.78 g/MJ)
• Average electrical power consumption: 330 W
• High-efficiency certified appliance: Yes, EPA 2020 approved
• Maximum log length: 21"
• Log positioning: Loading over width and over depth
• Chimney diameter: 6"
• Flue outlet diameter: 6"
• Type of chimney: CAN/ULC S629, UL 103 HT (2100 °F)
• Baffle type: C-Cast or equivalent
• Approved for a mobile home installation: No
• Shipping Weight: 740 lb (337 kg)
• Door type: Single, glass with cast iron frame
• Glass type: Ceramic glass
• Glass surface – dimensions (Width X Height): 12 3/8 X 10 1/8"
• Glass air-wash system: Yes
• Blower (hp / speed / CFM): 1/3 | 1 | 1,135
• Filter – dimensions (Width X Height X Depth): 15" X 20" X 1"
• Overall dimension (Height): 63 1/2"
• Overall dimension (Width): 27 3/4"
• Overall dimension (Depth): 51 1/8"
• Door opening – dimension (Height): 10"
• Door opening - dimension (Width): 13 3/4"
